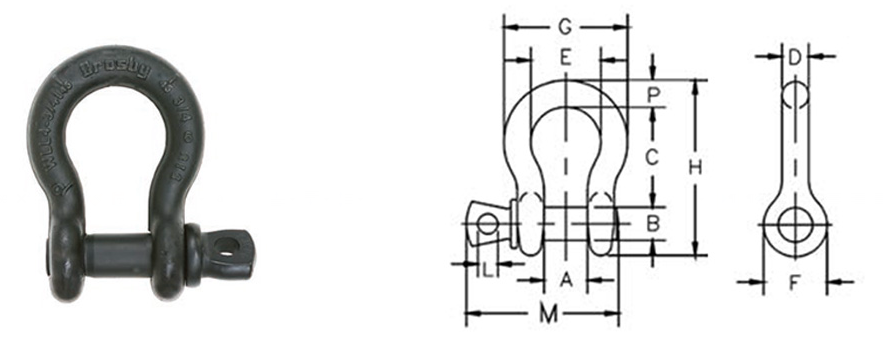

产品编号 | 产品规格 | 工作载荷(T) | 主要技术参数(mm) | 公差(+/-) | 单重(kg) | |||||||||||
A | B | C | D | E | F | G | H | L | M | P | C | A | ||||
PWTS-01 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63 | 6.35 | 51.5 | 9.65 | 3.3 | 1.5 | 0.14 |
PWTS-02 | 7/16 | 1.5 | 19.1 | 12.7 | 42.9 | 11.2 | 29.9 | 26.9 | 51.5 | 74 | 7.85 | 60.5 | 11.2 | 3.3 | 1.5 | 0.17 |
PWTS-03 | 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 3.3 | 1.5 | 0.33 |
PWTS-04 | 5/8 | 3.25 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85 | 17.5 | 6.35 | 1.5 | 0.62 |
PWTS-05 | 3/4 | 4.75 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 89 | 126 | 12.7 | 101 | 20.6 | 6.35 | 1.5 | 1.07 |
