直型卸扣
直型卸扣
采用优质合金结构钢锻造并进行热处理而成.
卸扣本体都有工作额载及型号标识
可根据客户要求对卸扣表面进行电镀锌或热镀锌处理
最大试验载荷为额定载荷的2倍,最小破断载荷为额定载荷的4倍.
符合联邦RR-C-271D和ISO2415-2004规定的技术要求和检测方法.
可接受特殊尺寸定制
卸扣本体都有工作额载及型号标识
可根据客户要求对卸扣表面进行电镀锌或热镀锌处理
最大试验载荷为额定载荷的2倍,最小破断载荷为额定载荷的4倍.
符合联邦RR-C-271D和ISO2415-2004规定的技术要求和检测方法.
可接受特殊尺寸定制

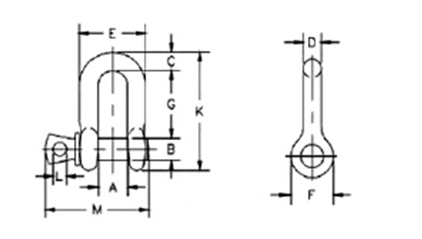

| 产品编号 | 工作载荷（T) | 主要技术参数（mm) | 单重（kg） | |||||||||
| A | B | C | D | E | F | G | K | L | M | |||
| PSD-01 | 0.5 | 11.9 | 7.9 | 6.4 | 6.4 | 24.6 | 15.5 | 22.4 | 40.4 | 4.8 | 35.1 | 0.05 |
| PSD-02 | 0.75 | 13.5 | 9.7 | 7.9 | 7.9 | 29.5 | 19.1 | 26.2 | 48.5 | 5.6 | 42.2 | 0.08 |
| PSD-03 | 1 | 16.8 | 11.2 | 9.7 | 9.7 | 35.8 | 23.1 | 31.8 | 58.4 | 6.4 | 51.6 | 0.13 |
| PSD-04 | 1.5 | 19.1 | 12.7 | 11.2 | 11.2 | 41.4 | 26.9 | 36.6 | 67.6 | 7.9 | 60.5 | 0.20 |
| PSD-05 | 2 | 20.6 | 16.0 | 12.7 | 12.7 | 46.0 | 30.2 | 41.4 | 77.0 | 9.7 | 68.3 | 0.27 |
| PSD-06 | 3.25 | 26.9 | 19.1 | 15.7 | 16.0 | 58.7 | 38.1 | 50.8 | 95.3 | 11.2 | 84.8 | 0.57 |
| PSD-07 | 4.75 | 31.8 | 22.4 | 20.6 | 19.1 | 69.9 | 46.0 | 60.5 | 115.1 | 12.7 | 100.8 | 1.19 |
| PSD-08 | 6.5 | 36.6 | 25.4 | 24.6 | 22.4 | 81.0 | 53.1 | 71.4 | 135.4 | 12.7 | 114.3 | 1.43 |
| PSD-09 | 8.5 | 42.9 | 28.7 | 25.4 | 25.4 | 93.7 | 60.5 | 81.0 | 150.9 | 14.2 | 128.8 | 2.15 |
| PSD-10 | 9.5 | 46.0 | 31.8 | 31.8 | 28.7 | 103.1 | 68.3 | 90.9 | 172.2 | 16.0 | 142.0 | 3.06 |
| PSD-11 | 12 | 51.6 | 35.1 | 35.1 | 31.8 | 115.1 | 76.2 | 100.1 | 190.5 | 17.5 | 156.5 | 4.11 |
| PSD-12 | 13.5 | 57.2 | 38.1 | 38.1 | 35.1 | 127.0 | 84.1 | 111.3 | 210.3 | 19.1 | 173.7 | 5.28 |
| PSD-13 | 17 | 60.5 | 41.1 | 41.1 | 38.1 | 136.7 | 91.9 | 122.2 | 230.1 | 20.6 | 186.7 | 7.23 |
| PSD-14 | 25 | 73.2 | 53.8 | 53.8 | 44.5 | 162.1 | 106.4 | 146.1 | 278.6 | 25.4 | 230.6 | 12.13 |
| PSD-15 | 35 | 82.6 | 50.8 | 50.8 | 50.8 | 184.2 | 122.2 | 171.5 | 311.9 | 31.0 | 262.6 | 19.19 |
| PSD-16 | 55 | 104.9 | 66.5 | 66.5 | 66.5 | 238.3 | 144.5 | 203.2 | 376.9 | 35.1 | 330.2 | 32.55 |
