产品编号 | 工作载荷(T) | 主要技术参数(mm) | 单重(kg) | ||||||||

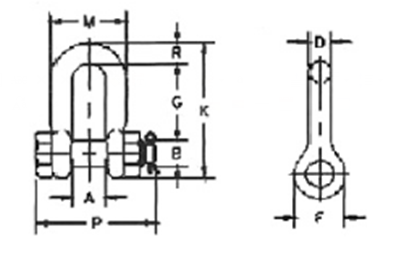

A | B | D | F | G | K | M | P | R | |||
PSDX-01 | 0.5 | 11.90 | 7.85 | 6.35 | 15.50 | 19.10 | 40.40 | 24.60 | 39.60 | 6.35 | 0.06 |
PSDX-02 | 0.75 | 13.50 | 9.65 | 7.85 | 19.10 | 25.40 | 48.50 | 29.50 | 46.20 | 7.85 | 0.10 |
PSDX-03 | 1 | 16.80 | 11.20 | 9.65 | 23.10 | 31.00 | 58.50 | 35.80 | 55.00 | 9.65 | 0.15 |
PSDX-04 | 1.5 | 19.10 | 12.70 | 11.20 | 26.90 | 36.10 | 67.50 | 41.10 | 63.50 | 11.20 | 0.22 |
PSDX-05 | 2 | 20.60 | 16.00 | 12.70 | 30.20 | 41.40 | 77.00 | 46.00 | 71.00 | 12.70 | 0.34 |
PSDX-06 | 3.25 | 26.90 | 19.10 | 16.00 | 38.10 | 51.00 | 95.50 | 58.50 | 89.50 | 16.00 | 0.67 |
PSDX-07 | 4.75 | 31.80 | 22.40 | 19.10 | 46.00 | 60.00 | 115.00 | 70.00 | 103.00 | 20.60 | 1.14 |
PSDX-08 | 6.5 | 36.60 | 25.40 | 22.40 | 53.00 | 71.50 | 135.00 | 81.00 | 120.00 | 24.60 | 1.75 |
PSDX-09 | 8.5 | 42.90 | 28.70 | 25.40 | 60.50 | 81.00 | 151.00 | 93.50 | 135.00 | 25.40 | 2.52 |
PSDX-10 | 9.5 | 46.00 | 31.80 | 28.70 | 68.50 | 91.00 | 172.00 | 103.00 | 150.00 | 31.80 | 3.45 |
PSDX-11 | 12 | 51.60 | 35.10 | 31.80 | 76.00 | 100.00 | 191.00 | 115.00 | 165.00 | 35.10 | 4.90 |
PSDX-12 | 13.5 | 57.20 | 38.10 | 35.10 | 84.00 | 111.00 | 210.00 | 127.00 | 183.00 | 38.10 | 6.24 |
PSDX-13 | 17 | 60.50 | 41.40 | 38.10 | 92.00 | 122.00 | 230.00 | 137.00 | 196.00 | 41.10 | 8.39 |
PSDX-14 | 25 | 73.20 | 51.00 | 44.50 | 106.00 | 146.00 | 279.00 | 162.00 | 230.00 | 54.00 | 14.24 |
PSDX-15 | 35 | 82.60 | 57.00 | 51.00 | 122.00 | 172.00 | 312.00 | 184.00 | 264.00 | 60.00 | 21.20 |
PSDX-16 | 55 | 104.90 | 70.00 | 66.50 | 145.00 | 203.00 | 377.00 | 238.00 | 344.00 | 66.50 | 38.56 |
PSDX-17 | 85 | 127.00 | 82.50 | 76.00 | 165.00 | 216.00 | 429.00 | 279.00 | 419.00 | 89.00 | 56.36 |
