产品编号 | 公称尺寸(mm) | 工作载荷(T) | 破断载荷(T) | 主要技术参数(mm) | 单重(kg) | ||||||||

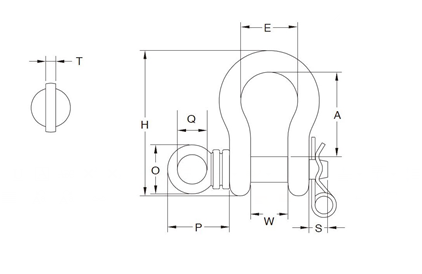

P | O | W | A | E | T | H | Q | S | |||||
PROV-01 | 22 | 6.5 | 32.5 | 63 | 50 | 38 | 86 | 5 | 10 | 148 | 30 | 19 | 1.80 |
PROV-02 | 26 | 8.5 | 42.5 | 65 | 50 | 44 | 96 | 69 | 10 | 166 | 30 | 20 | 2.40 |
PROV-03 | 28 | 9.5 | 47.5 | 88 | 70 | 46 | 111 | 74 | 12 | 190 | 35 | 21 | 3.60 |
PROV-04 | 32 | 12.0 | 60 | 88 | 70 | 54 | 121 | 84 | 12 | 210 | 35 | 25 | 4.80 |
PROV-05 | 36 | 13.5 | 67.5 | 96 | 75 | 59 | 134 | 92 | 15 | 232 | 40 | 27 | 6.80 |
PROV-06 | 38 | 17.0 | 85 | 98 | 75 | 60 | 146 | 99 | 15 | 254 | 40 | 27 | 8.20 |
PROV-07 | 45 | 25.0 | 125 | 114 | 90 | 73 | 178 | 127 | 20 | 313 | 50 | 30 | 16.80 |
PROV-08 | 50 | 35.0 | 175 | 132 | 106 | 83 | 197 | 146 | 20 | 347 | 60 | 30 | 23.60 |
