不锈钢美式直型卸扣
不锈钢美式直型卸扣
采用锻打工艺
具有很强的载重能力和抗腐蚀能力
用于多种环境
可提供304/316材质
具有很强的载重能力和抗腐蚀能力
用于多种环境
可提供304/316材质

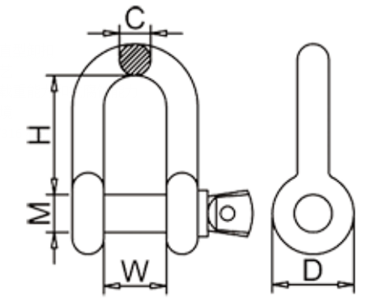

不锈钢美式直型卸扣
| 产品编号 | 规格 M（in.） | 工作载荷（kg） | 主要技术参数（mm） | 单重（kg） | |||
| C | H | W | D | ||||
| PND-01 | 3/16 | 150 | 4.8 | 9.0 | 20.0 | 14.2 | 0.023 |
| PND-02 | 1/4 | 200 | 6.4 | 12.0 | 22.0 | 15.5 | 0.050 |
| PND-03 | 5/16 | 340 | 9.5 | 13.0 | 26.0 | 19.0 | 0.077 |
| PND-04 | 3/8 | 450 | 8.0 | 16.0 | 31.0 | 23.1 | 0.109 |
| PND-05 | 7/16 | 700 | 11.1 | 18.0 | 36.0 | 26.9 | 0.181 |
| PND-06 | 1/2 | 900 | 12.7 | 20.0 | 41.0 | 30.2 | 0.268 |
| PND-07 | 5/8 | 1500 | 15.9 | 27.0 | 51.0 | 38.1 | 0.549 |
| PND-08 | 3/4 | 2000 | 19.0 | 31.0 | 60.0 | 46.0 | 1.021 |
| PND-09 | 7/8 | 3000 | 22.2 | 36.0 | 71.0 | 53.1 | 1.433 |
| PND-10 | 1 | 4000 | 25.4 | 43.0 | 81.0 | 60.5 | 2.155 |
| PND-11 | 1-1/8 | 4300 | 28.6 | 46.0 | 90.0 | 68.3 | 3.032 |
| PND-12 | 1-1/4 | 5500 | 31.8 | 51.0 | 100.0 | 76.2 | 4.120 |
| PND-13 | 1-3/8 | 6000 | 34.9 | 57.0 | 112.0 | 84.1 | 5.275 |
| PND-14 | 1-1/2 | 7500 | 38.1 | 60.0 | 124.0 | 92.2 | 7.235 |
| PND-15 | 1-3/4 | 11350 | 44.4 | 73.0 | 146.0 | 106.4 | 12.133 |
| PND-16 | 2 | 15500 | 50.8 | 82.0 | 171.0 | 123.2 | 19.192 |
| PND-17 | 2-1/2 | 25000 | 63.5 | 105.0 | 203.0 | 144.5 | 32.546 |

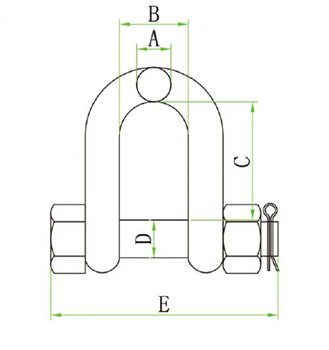

不锈钢美式直型保险卸扣
| 产品编号 | 规格 M（in.） | 工作载荷（kg） | 主要技术参数（mm） | 单重（kg） | ||||
| A | B | C | D | E | ||||
| PNDX-01 | 3/16 | 150 | 4.8 | 9.0 | 20.0 | 6.0 | 35.0 | 0.025 |
| PNDX-02 | 1/4 | 200 | 6.4 | 12.0 | 22.0 | 8.0 | 40.0 | 0.070 |
| PNDX-03 | 5/16 | 340 | 9.5 | 13.0 | 26.0 | 9.0 | 46.0 | 0.082 |
| PNDX-04 | 3/8 | 450 | 8.0 | 16.0 | 31.0 | 11.0 | 55.0 | 0.123 |
| PNDX-05 | 7/16 | 700 | 11.1 | 18.0 | 36.0 | 13.0 | 64.0 | 0.213 |
| PNDX-06 | 1/2 | 900 | 12.7 | 20.0 | 41.0 | 16.0 | 71.0 | 0.355 |
| PNDX-07 | 5/8 | 1500 | 15.9 | 27.0 | 51.0 | 20.0 | 90.0 | 0.623 |
| PNDX-08 | 3/4 | 2000 | 19.0 | 31.0 | 60.0 | 23.0 | 105.0 | 1.689 |
| PNDX-09 | 7/8 | 3000 | 22.2 | 36.0 | 71.0 | 26.0 | 122.0 | 1.969 |
| PNDX-10 | 1 | 4000 | 25.4 | 43.0 | 81.0 | 29.0 | 137.0 | 2.720 |
| PNDX-11 | 1-1/8 | 4300 | 28.6 | 46.0 | 90.0 | 32.0 | 150.0 | 3.892 |
| PNDX-12 | 1-1/4 | 5500 | 31.8 | 51.0 | 100.0 | 36.0 | 170.0 | 4.950 |
| PNDX-13 | 1-3/8 | 6000 | 34.9 | 57.0 | 112.0 | 39.0 | 183.0 | 6.523 |
| PNDX-14 | 1-1/2 | 7500 | 38.1 | 60.0 | 124.0 | 42.0 | 196.0 | 8.155 |
| PNDX-15 | 1-3/4 | 11350 | 44.4 | 73.0 | 146.0 | 52.0 | 237.0 | 13.950 |
| PNDX-16 | 2 | 15500 | 50.8 | 82.0 | 171.0 | 58.0 | 264.0 | 22.523 |
| PNDX-17 | 2-1/2 | 25000 | 63.5 | 105.0 | 203.0 | 71.0 | 345.0 | 36.481 |
| PNDX-18 | 3 | 38500 | 76.2 | 127.0 | 217.0 | 83.0 | 384.0 | 42.021 |
