不锈钢弹簧钩
不锈钢弹簧钩
适用于安全绳索的快速连接.
材质 ：304，316
材质 ：304，316

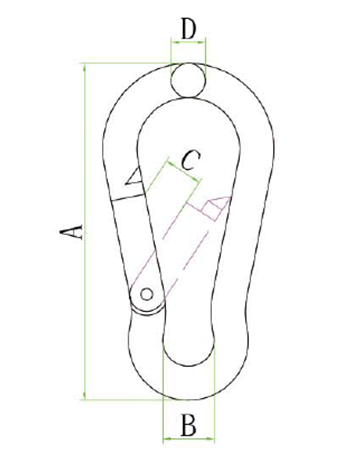

| 产品编号 | 尺寸规格 | 工作载荷（kg） | 主要技术参数(mm) | |||
| A | B | C | D | |||
| PCH-01 | 4*40 | 40.0 | 40.0 | 6.5 | 6.0 | 4.0 |
| PCH-02 | 5*50 | 50.0 | 50.0 | 8.0 | 7.0 | 5.0 |
| PCH-03 | 6*60 | 70.0 | 60.0 | 9.0 | 8.0 | 6.0 |
| PCH-04 | 7*70 | 100.0 | 70.0 | 10.5 | 8.0 | 7.0 |
| PCH-05 | 8*80 | 125.0 | 80.0 | 12.0 | 9.0 | 8.0 |
| PCH-06 | 9*90 | 140.0 | 90.0 | 13.0 | 10.0 | 9.0 |
| PCH-07 | 10*100 | 200.0 | 100.0 | 15.0 | 12.0 | 10.0 |
| PCH-08 | 11*120 | 250.0 | 120.0 | 18.0 | 16.0 | 11.0 |
| PCH-09 | 12*140 | 300.0 | 140.0 | 20.0 | 19.0 | 12.0 |
| PCH-10 | 13*160 | 350.0 | 160.0 | 22.0 | 25.0 | 13.0 |
| PCH-11 | 14*180 | 450.0 | 180.0 | 22.0 | 35.0 | 14.0 |
