万向旋转吊环
万向旋转吊环
主体材质采用进口42CrMo合金钢,相比国内同类产品具备更好的韧性和耐疲券性能。
12.9级高强度螺栓, 6g精度,发黑防锈处理,确保通过螺纹通规检验。
生产执行EN 1677标准, 2005年起即出口欧美,通过欧洲和美国实验室G80级产品检测
1.5倍工作负荷下,完成2万次耐疲劳测试。
2倍试验载荷,4倍破断拉力测试。
100%全体磁粉探伤检验。
可根据客户需求定制螺纹长度。
12.9级高强度螺栓, 6g精度,发黑防锈处理,确保通过螺纹通规检验。
生产执行EN 1677标准, 2005年起即出口欧美,通过欧洲和美国实验室G80级产品检测
1.5倍工作负荷下,完成2万次耐疲劳测试。
2倍试验载荷,4倍破断拉力测试。
100%全体磁粉探伤检验。
可根据客户需求定制螺纹长度。

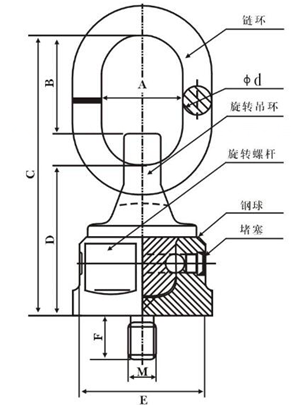

| 产品编号 | 螺纹规格 | 工作载荷(T) | 主要技术参数(mm) | 单重（kg） | ||||||
| A | B | C | D | d | E | F | ||||
| PUL-01 | M8X1.25 | 0.4 | 27.0 | 39.0 | 85.0 | 38.0 | 7.9 | 33.3 | 12.0 | 0.3 |
| PUL-02 | M10X1.5 | 0.5 | 27.0 | 39.0 | 85.0 | 38.0 | 7.9 | 33.3 | 19.0 | 0.3 |
| PUL-03 | M12X1.75 | 1.05 | 35.0 | 58.0 | 135.0 | 38.0 | 12.7 | 54.3 | 19.1 | 1.2 |
| PUL-04 | M14X2.0 | 1.15 | 35.0 | 58.0 | 135.0 | 65.0 | 12.7 | 54.3 | 31.8 | 1.2 |
| PUL-05 | M16X2.0 | 1.9 | 35.0 | 58.0 | 135.0 | 65.0 | 12.7 | 54.3 | 31.8 | 1.2 |
| PUL-06 | M20X2.5 | 2.15 | 40.0 | 67.0 | 160.0 | 75.5 | 19.1 | 64.3 | 38.1 | 2.2 |
| PUL-07 | M22X2.5 | 2.25 | 40.0 | 67.0 | 160.0 | 75.5 | 19.1 | 64.3 | 38.1 | 2.2 |
| PUL-08 | M24X3.0 | 4.2 | 40.0 | 67.0 | 160.0 | 75.5 | 19.1 | 64.3 | 38.1 | 2.2 |
| PUL-09 | M30X3.5 | 5 | 50.8 | 95.0 | 205.0 | 90.0 | 22.2 | 74.0 | 50.0 | 3.9 |
| PUL-10 | M33X3.5 | 7 | 50.8 | 95.0 | 205.0 | 90.0 | 22.2 | 74.0 | 50.0 | 3.9 |
| PUL-11 | M36X4.0 | 8 | 50.8 | 95.0 | 205.0 | 90.0 | 22.2 | 74.0 | 54.0 | 3.9 |
| PUL-12 | M39X4.0 | 8 | 50.8 | 95.0 | 205.0 | 90.0 | 22.2 | 74.0 | 58.0 | 3.9 |
| PUL-13 | M42X4.5 | 10 | 65.0 | 108.0 | 230.0 | 100.0 | 25.0 | 85.0 | 63.0 | 6.1 |
| PUL-14 | M45X4.5 | 10 | 65.0 | 108.0 | 230.0 | 100.0 | 25.0 | 85.0 | 68.0 | 6.1 |
| PUL-15 | M48X5.0 | 10 | 65.0 | 108.0 | 230.0 | 100.0 | 25.0 | 85.0 | 68.0 | 6.1 |
| PUL-16 | M56X5.5 | 15 | 70.0 | 120.0 | 278.0 | 132.0 | 32.0 | 95.0 | 84.0 | 10.8 |
| PUL-17 | M60X5.5 | 15 | 70.0 | 120.0 | 278.0 | 132.0 | 32.0 | 95.0 | 90.0 | 10.8 |
| PUL-18 | M64X6.0 | 15 | 70.0 | 120.0 | 278.0 | 132.0 | 32.0 | 95.0 | 95.0 | 10.8 |
| PUL-19 | M72X6.0 | 25 | 80.0 | 125.0 | 331.0 | 166.0 | 40.0 | 130.0 | 108.0 | 27.0 |
| PUL-20 | M80X6.0 | 30 | 80.0 | 125.0 | 331.0 | 166.0 | 40.0 | 130.0 | 120.0 | 27.0 |
| PUL-21 | M90X6.0 | 35 | 80.0 | 125.0 | 331.0 | 166.0 | 40.0 | 130.0 | 135.0 | 40.0 |
