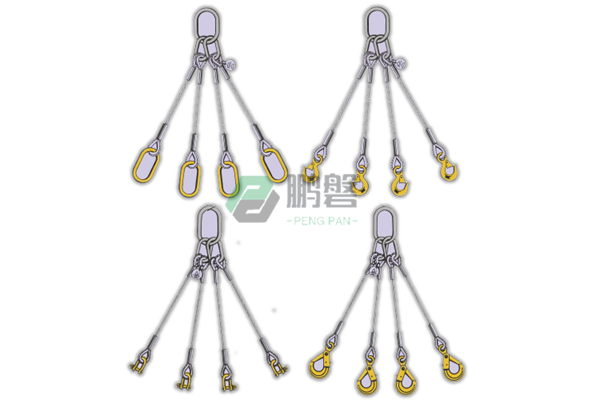

四腿压制钢丝绳索具

产品符合GB/T16762-2009标准.
挂有铭牌,载有批次编号额载等信息,以便于保证产品质量的可追溯性.
安全系数5:1.
适用温度-40℃-150℃.
表中的额载计算依据为Φ6~Φ60采用6x37(b)-1670级钢丝绳,Φ62~Φ120采用8x61(b)-1670级钢丝绳
钢丝绳长度L根据客户要求



产品编号钢丝绳直径(mm)工作载荷(KN)吊环参数 AXBXd (mm)吊钩
0°-90°90°-120°型号载荷(T)
PSRF-0665.6465X130X16(美)S60.75
PSRF-0777.65.465X130X16(美)S60.75
PSRF-0889.97.165X130X16(美)S60.75
PSRF-09912.6965X130X16(美)S60.75
PSRF-1010151165X130X16(美)S60.75
PSRF-1111191365X130X16(美)S61
PSRF-1212221680X150X20(美)S61.5
PSRF-1313261980X150X20(美)S61.5
PSRF-1414302280X150X20(美)S61.5
PSRF-1616402890X160X24(美)S62
PSRF-1818503690X160X24(美)S63
PSRF-20206244100X190X28(美)S63
PSRF-22227554100X190X28(美)S65
PSRF-24248964110X200X32(美)S65
PSRF-262610575110X200X32(美)S65
PSRF-282812287120X230X34(美)S67.5
PSRF-303013899135X250X38(美)S67.5
PSRF-3232159113135X250X38(美)S610
PSRF-3434178127140X270X42(美)S610
PSRF-3636201144140X270X42(美)S610
PSRF-3838224159160X310X46(环眼)15
PSRF-4040248177160X310X46(环眼)15
PSRF-4242273195180X330X52(环眼)15
PSRF-4444300214180X330X52(环眼)37
PSRF-4646327234180X330X56(环眼)37
PSRF-4848356254180X330X56(环眼)37
PSRF-5050388277180X330X56(环眼)37
PSRF-5252419299210X410X62(环眼)37
PSRF-5454451322210X410X62(环眼)37
PSRF-5656485347210X410X62(环眼)37
PSRF-5858521372210X410X68(环眼)37
PSRF-6060558398203X406X68(环眼)37
