产品中心 > 索具配件 > 锻造梨形环

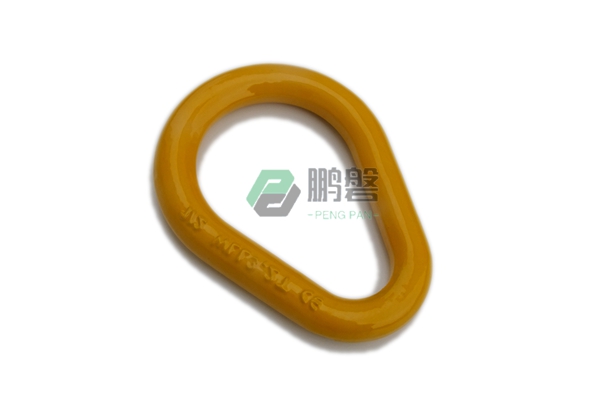

锻造梨形环

符合欧盟EN1677-4标准
选用高强度高韧性特殊合金钢,并经过热处理
每件按工作拉力的2.5倍进行验证测试
抽样进行20000次疲劳测试
对每一批次产品进行严格的抽样破断测试
进行100%磁粉探伤
安全系数5:1
表面处理:喷塑

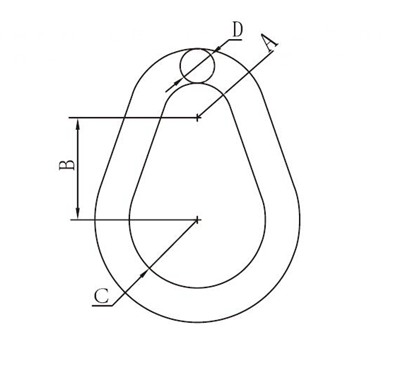

产品编号工作载荷(T)破断载荷(T)主要技术参数(mm)单重(kg)
ABCD
PPR-011.68.010.028.519.010.00.10
PPR-023.216.012.538.025.512.50.25
PPR-034.120.516.047.532.016.00.50
PPR-045.628.019.057.038.019.00.80
PPR-056.432.022.067.044.522.21.40
PPR-0611.055.025.076.051.025.41.90
PPR-0713.969.528.086.057.028.52.92
PPR-0816.381.532.095.063.532.03.75
PPR-0919.597.535.0105.070.035.05.12
PPR-1024.6123.038.0114.076.038.06.50
PPR-1128.4142.041.5124.082.541.38.40
PPR-1238.5192.544.5133.089.044.510.21
PPR-1343.5217.548.0143.095.547.613.15
PPR-1446.5232.551.0152.5102.051.015.42
PPR-1564.9324.557.5171.5114.557.021.78
PPR-1666.8334.063.5190.5127.063.529.94
PPR-1798.4492.070.0209.5140.070.039.92
PPR-18103.4517.076.5229.0152.576.051.71
PPR-19118.9594.582.5248.0165.082.566.23
PPR-20126.6633.089.0257.5178.089.082.10
PPR-21169.2846.0102.0305.0203.5101.5122.93
